We are a technology group that specializes in round things

equipment

【MAKINO MILLING MACHINE CO., LTD.】

パレットチェンジで部品加工の高精度量産化！

Equipped with a pallet changer, it improved the efficiency of automatic operation at night and processing work without unattended.
Maintaining high precision mass production, contributing to performance improvement.

  • ■MaximumWork（Work limited）
  • ・Wide…1000mm
  • ・Depth…550mm
  • ・Height…400mm
  • ■Spindle Speed Range：50〜20000min-1

V56i/V33i"Palette changer" installed! Night / unmanned,
specializing in automatic operation

Aiming for unmanned mold manufacturing, achieve reduction in man-hours and cost!
High quality, high precision, shortening product lead time became possible.

【MAKINO MILLING MACHINE CO., LTD.】

With 30,000 spindles, we will not mistakethe target accuracy.

It is a machining center that can obtain absolute precision without relying on
warm-up operation and correction at machining sites of molds and high-precision parts
requiring accuracy of several micron level.

  • ■MaximumWork （Work limited）
  • ・Wide…650mm
  • ・Depth…400mm
  • ・Height…250mm
  • ■Spindle Speed Range：300〜30000min-1

■Business Use Computer Software
3DCAD Solid Works Solid Works Japan
2DCAD MYPAC Kuraki Machinery
3DCAE 3D-TIMON（Flow analysis） Toray Engineering
3DCAM Master Cam CNC Software
3DCAM MAPLE-3AX Yoshikawa-Maple
2DCAM MAPLE SUPER Yoshikawa-Maple
■Numerically-controlled machines
Vertical high speed machining center V56i（Pallet changer specification） Makino Milling Machine 2 unit
Vertical high speed machining center V33i（Pallet changer specification） Makino Milling Machine 2 unit
Vertical machining center VM53R OKK 1 unit
Numerically-controlled combined lathe QT NEXUS 250MY Yamazaki Mazak 1 unit
Numerically-controlled lathe QT20N Yamazaki Mazak 1 unit
CNC lathe NLX 2500/700 DMG MORI 1 unit
CNC precision lathe DL 530x100 Dainichi Kinzoku Kogyo 1 unit
Wirecut electrical discharge machine U53J（upgrade product） Makino Milling Machine 1 unit
Wirecut electrical discharge machine U53J Makino Milling Machine 1 unit
Die-sinking electric discharge machine EDAF3 Makino Milling Machine 1 unit
Die-sinking electric discharge machine EDGE3 Makino Milling Machine 1 unit
■General-purpose machines
Vertical milling machine KVJP55 Makino Milling Machine 1 unit
Vertical milling machine KSJP55 Makino Milling Machine 1 unit
Surface grinding machine PSG64CA1 Okamoto Machine Tool Works 1 unit
Surface grinding machine PSG63EXB Okamoto Machine Tool Works 1 unit
Surface grinding machine PSG52DX Okamoto Machine Tool Works 1 unit
Radial drilling machine YR3-115 Yoshida Iron and Steel 1 unit
Universal tool and cutter grinding machines DP-520 Ito Manufacturing 1 unit
Universal tool and cutter grinding machines G3-FR Ito Manufacturing 1 unit
Desk drilling machine etc...   ASHINA　etc... 7 units
■Molding equipment
Horizontal injection molding machine (electric) SE100EV-A Sumitomo Heavy Industries 1 unit
Horizontal injection molding machine (electric) SE100DU Sumitomo Heavy Industries 1 unit
Vertical injection molding machine (electric) ET-80Ⅱ VR2 TOYO MACHINERY & METAL 1 unit
Box shape dryer PO-50 Matsui Manufacturing 1 unit
Dehumidifying and drying unit DMZ2-40J-15 Matsui Manufacturing 1 unit
Mold temperature regulators MCⅢ135/31AX Matsui Manufacturing 1 unit
Control box for hot-runners MS-22P Meisei Metal Industries 2 units
Hot air annealing machine ULO-15B Koyo Heat Treatment 1 unit
Thermo-hygrostat SE-64CL-A Kato 1 unit
Crusher DAS-28 Daiko Seiki 1 unit
■Measurement/inspection equipment
CNC 3-dimensional coordinate measuring machine DuraMax TOKYO SEIMITSU 1 unit
CNC roundness measuring machine 54DX-3 TOKYO SEIMITSU 1 unit
CNC image measuring machine QV-L202Z1L-D Mitsutoyo 1 unit
CNC image measuring machine QS200Z3R Mitsutoyo 1 unit
Image size measuring instrument IM-7030 KEYENCE 1 unit
Tension-compression testing equipment (autograph) AGS-J Shimazu Manufacturing 1 unit
Surface roughness measuring machine FLEX-50A TOKYO SEIMITSU 1 unit
Eccentricity measuring machine P-2 Obishi Keiki Seisakusho 1 unit
Precision projector PJ311 Mitsutoyo 2 units
Tool microscope TM311 Mitsutoyo 1 unit
Tool microscope TMM-130E Topcon 1 unit
Electronic balance HG-1000 Shinkoh Appliances 1 unit
Electronic balance BW32KS Shimazu Manufacturing 1 unit
Gauge block   Mitsutoyo a lot
Various measuring equipment   Mitsutoyo a lot
  • ▲Vertical high speed machining center

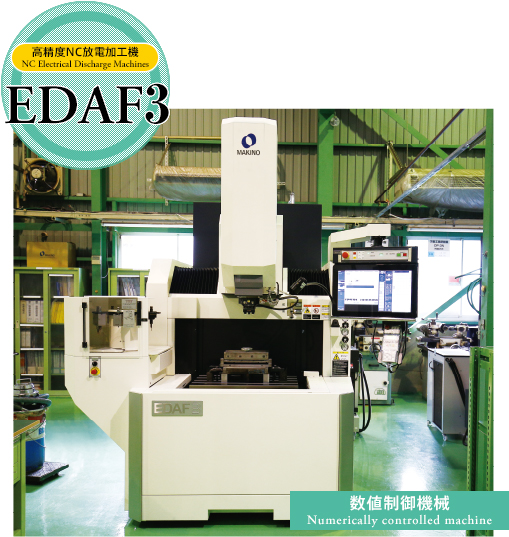

    ▲Die-sinking electric discharge machine EDAF3
  • ▲Vertical high speed machining center

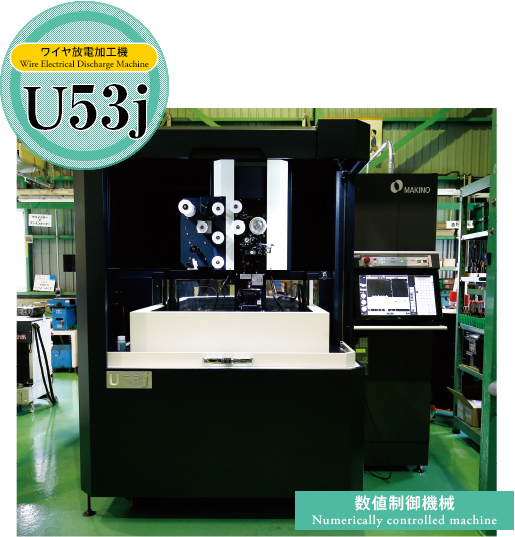

    ▲Wirecut electrical discharge machine U53J
  • ▲High-precision wire electric discharge machine

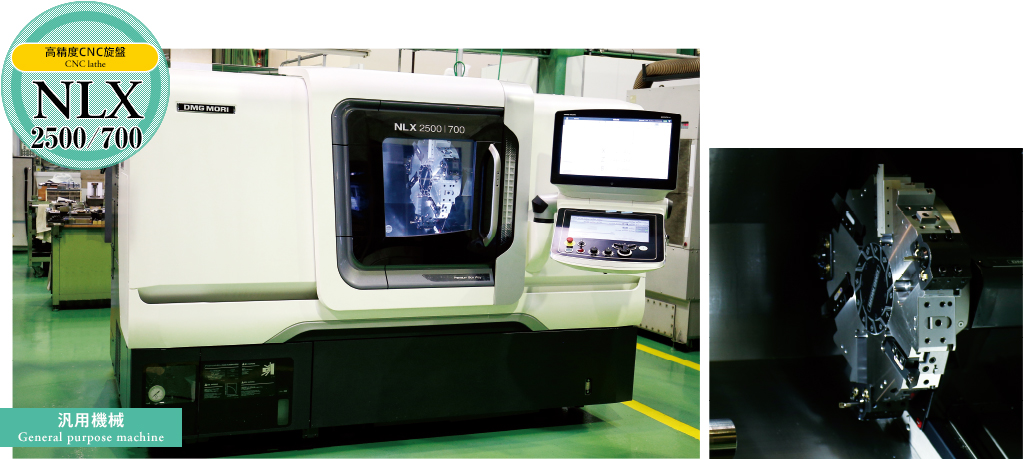

    ▲CNC lathe NLX 2500/700
  • ▲Die-sinking electric discharge machine

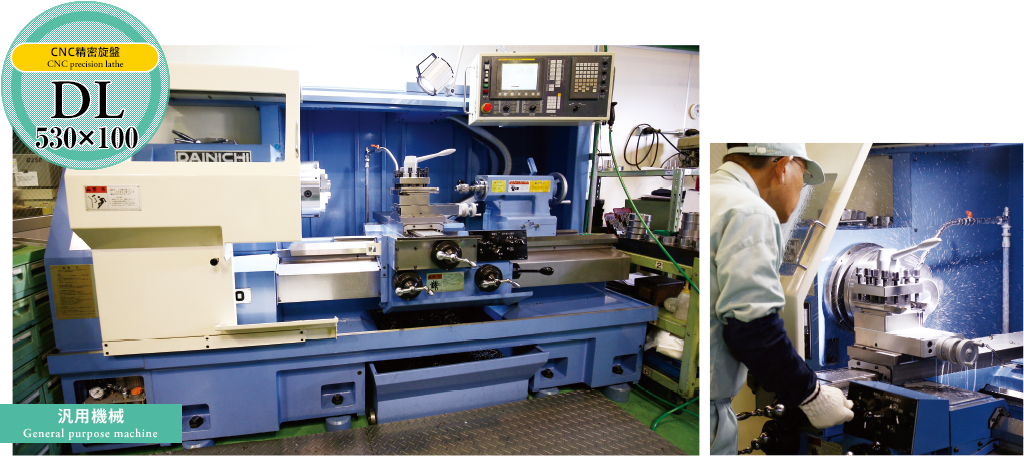

    ▲CNC precision lathe DL530×100
  • ▲NC lathe multifunction device
    ▲CNC 3-dimensional coordinate measuring machine DuraMax
  • ▲Injection molding machine（Thermoplastic and thermosetting specification）
    ▲Injection molding machine（Thermoplastic and thermosetting specification）
  • ▲CNC image measuring machine
    ▲CNC image measuring machine
  • ▲Autograph
    ▲Autograph
